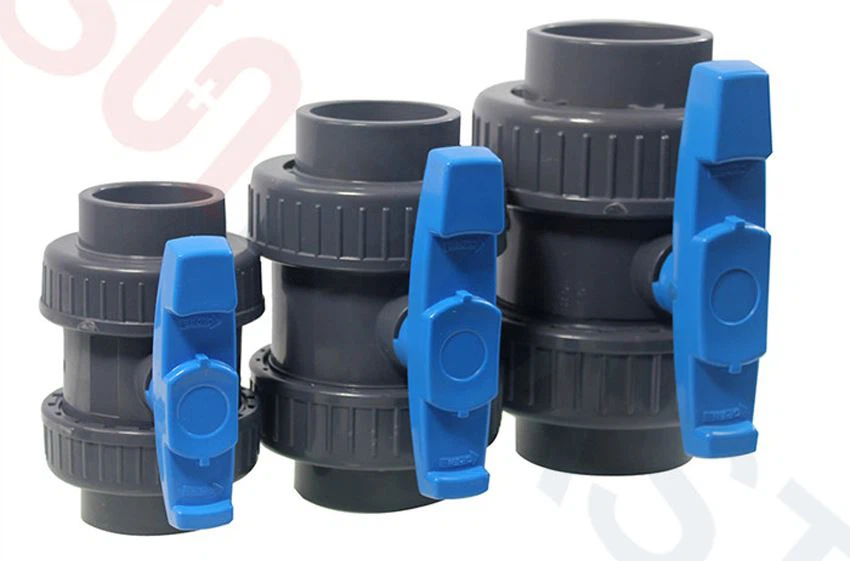

uPVC double union ball valve, or uPVC true union ball valve, as implied, two unions on it – one on either side. The unions enable the valve to be unscrewed and removed from the pipeline, where it can be serviced or checked to see whether it's blocked, and then easily put back in the pipeline where the unions can get screwed back on. The main advantage of a PVC double union ball valve is that it has a full-bore flow all the way through. This means there is nothing to catch any debris that might be coming down in the water or fluid. Therefore, it is highly unlikely to get blocked.

SUNPLAST PVC true union ball valve has slip socket ends on both ends, allow to connect the pipe by solvent weld. The double union ball valve we supplied are manual handle type, which are most common used by our customers.

The uPVC double union ball valve with solvent weld is made of high quality uPVC material, which is regularly UV- stability, and suitable for both indoor & outdoor use. The uPVC true union ball valve fittings are suitable for cold water supply, with max. Working temperature 60℃.

More brief details as below:

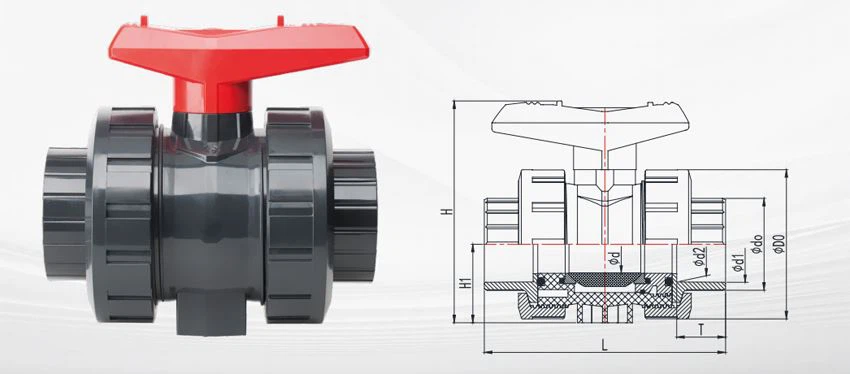

Product Specifications

uPVC Socket Double/True Union Valve Fittings: available from DN20mm ~DN110mm

Pressure: PN10 bars & PN16 bars

Color: Grey, Blue, White, or as per customer request.

(Noted: the technical data is just for reference, some data may change, if you need exact data, then please contact us directly)

Our Product Range

As a integrated manufacturer who engaged in uPVC pipe fittings over 10 years, SUNPLAST has developed a wide range of uPVC products with excellence performance & durability, all customers can find the best solution of fittings for their uPVC pipeline systems in SUNPLAST.

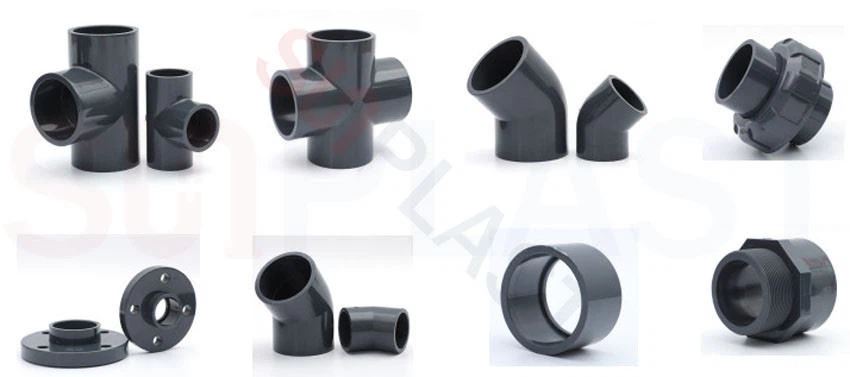

SUNPLAST uPVC solvent weld fittings can be supplied in a diameter ranging from 20mm to 400mm in both PN10 bars & PN16 bars, which are be comprised of the regular types: uPVC coupling, uPVC 90 degree elbow, uPVC 45 degree elbow, uPVC Tee, uPVC Union, uPVC Reducer, uPVC Clamp Saddle, uPVC Repair Saddle, uPVC Ball Valve, uPVC flange...etc.

Applicants of uPVC Pipe Fittings

uPVC pipes & fittings is one of the most cost-effective materials on the market today. Not only that but is lightweight, durable, and easy to install. uPVC solvent weld joint pipe fittings can resist temperatures up to 60℃ and can withstand pressures up to 16 bars.

The uPVC pressure pipe system is suitable for the transportation of potable water for industrial and domestic uses. Other major areas of application include:

● Agricultural irrigation

● Conveyance of processing fluids within industry

● Sewerage and industrial effluent disposal

● Conveyance of abrasive slurries

● Transportation of acids, alkalis and other corrosive chemicals (refer to section 4.8)

● Ground water transportation for land engineering

● Buried fire ring main

● Conduit or duct for cables and fragile piping systems

● Venting systems

● Rigid uPVC pipe should not be used at ambient or liquid temperatures in excess of 60℃ for pressure systems.

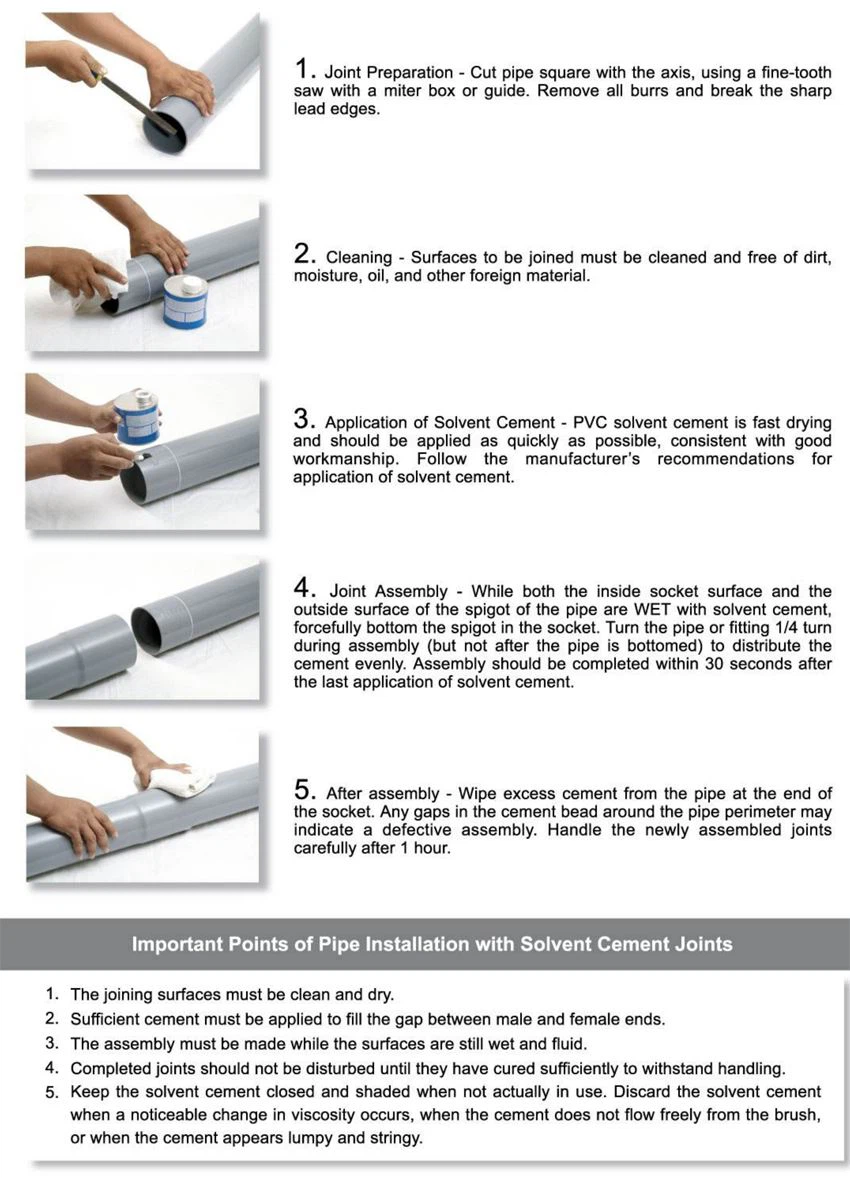

Installation procedure For uPVC Solvent Weld Joint Pipe Fittings

uPVC solvent weld joint fittings are the most commonly used accessories for the uPVC pressure pipe. The solvent weld joint not only provide a simple & easy joint method that save costs, but also a reliable joint with 100% water tight.

The installation procedure as below:

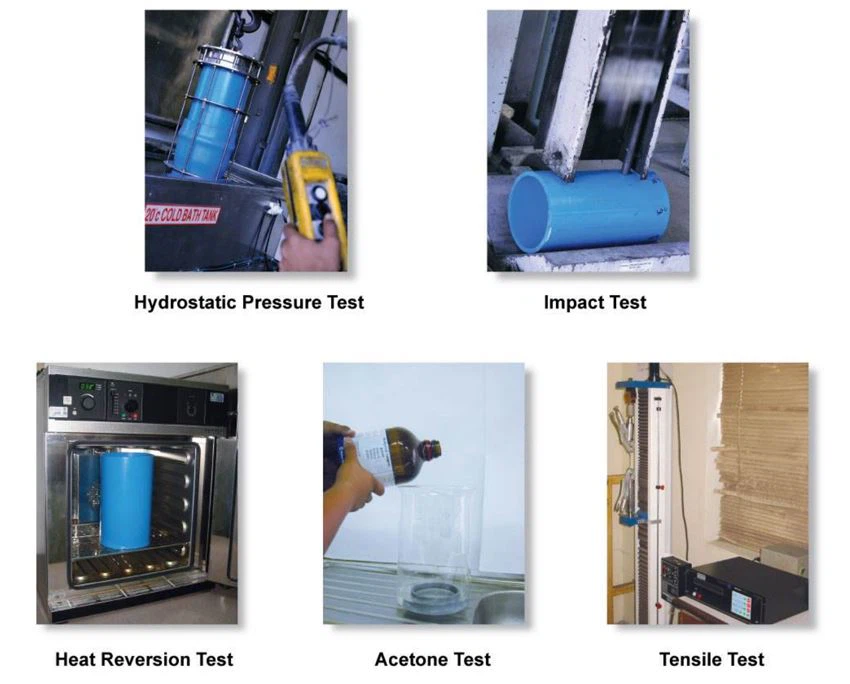

Quality Control

As a premier manufacturer in China, we committed to supply the best quality uPVC pipe fittings to our customers. Every production processes from the start to end are strictly monitored and recorded. Well-trained staffs are exercising inspection and quality control using calibrated equipment.

All tests are carried out in our laboratory and the results have been properly recorded. We assure that only products which pass our stringent testing in compliance with the relevant standard’s requirements will only be released or delivered to our customers.

Contact Us

If you have any requirements on uPVC fittings, or any question on our fittings, please contact us freely. SUNPLAST has well trained staff who are available to address your needs and provide technical support to all sectors when needed.
