Sunplast uPVC rubber gasket fittings are manufactured in accordance with ISO 4422-3:1996.
U-PVC fittings with rubber ring joint for transporting water in high-quality plastic material.
These special fittings are equipped with a gasket in atoxic NBR, the G/RRJ, utilized rubber seal to create watertight joint, suitable to use for water supply reticulation systems.
Material
- PVC-U = Unplasticised Polyvinylchloride
Gaskets
- EPDM
Manufacture
- Injection moulded
About uPVC Spigot Flange Adaptor
Different to uPVC gasketed flange adaptor that have one bell end with rubber ring, uPVC Spigot flange adaptor has a spigot end with a chamfer of approximately 12~15 degree, and the other one is flange end. uPVC spigot flange allow to connect to the uPVC pipes that has a “gasketed” end, at the same time, it can make a mechanical joint intended to connect uPVC pipe to any flanged piping components (such as valves, pumps..etc).
More brief details as below:
Product | uPVC Spigot Flange Adaptor, PVC Spigot Flange, uPVC Spigot Flange |
Specification | DN63~DN400mm |
Pressure ratings | PN10 |
Material | Unplasticized polyvinyl chloride |
Manufacturing Process | Injection molded |
Color | Grey, Blue, White, or as per customers request. |
Manufacturing Standard | GB/T10002.2-2003, ISO 4422-3:1996, ISO 1542-3:2009, DIN 8062 |
Samples available | Yes, samples are available, but charged. |
Packing method | Cartons |
MOQ | Negotiable |
Customized Logo available (OEM Service) | For small quantity of order, customer logo can be marked on the fittings by laser marking or sticker. For big quantity of order, customer logo can be embossed on the fittings. |
Production lead time | Mass stock available for regular sizes About 10 days for a 20ft container, 20 days for a 40ft container |
Warranty time | 5 years for normal use |
Payment term | T/T, L/C, DP, Western Union, or negotiable |
FOB loading port | Ningbo/Shanghai China |
Place of origin | Ningbo, China |
Product Specifications
SUNPLAST uPVC spigot flange adaptor can be provided in a diameter from 63mm to 400mm, with a normal pressure rating of PN10 bars:
Size De | Dimensions | |||||||
D0 | D1 | D2 | d1 | T | H | L | n | |
63 | 63.20 | 164.00 | 125.00 | 62.00 | 102.00 | 17.30 | 127.00 | 4 |
75 | 75.30 | 184.00 | 145.00 | 73.50 | 110.00 | 17.00 | 137.50 | 4 |
90 | 90.30 | 198.50 | 160.00 | 88.50 | 115.00 | 19.00 | 144.00 | 8 |
110 | 110.30 | 223.50 | 180.00 | 108.00 | 128.00 | 20.00 | 154.00 | 8 |
160 | 160.40 | 283.50 | 240.00 | 123.00 | 145.00 | 23.00 | 190.00 | 8 |
200 | 200.50 | 338.00 | 295.00 | 158.00 | 160.00 | 27.00 | 203.50 | 8 |
225 | 225.50 | 345.00 | 295.00 | 197.00 | 167.00 | 29.50 | 216.00 | 8 |
250 | 250.50 | 393.00 | 350.00 | 221.00 | 180.00 | 31.00 | 232.00 | 12 |
315 | 315.60 | 443.50 | 400.00 | 312.00 | 207.00 | 35.50 | 268.00 | 12 |
355 | 355.60 | 510.00 | 460.00 | 326.00 | 235.00 | 42.50 | 300.00 | 16 |
400 | 400.60 | 568.20 | 510.00 | 568.20 | 245.00 | 41.00 | 314.00 | 16 |
(Noted: the technical data is just for reference, some data may change, if you need exact data, then please contact us directly)
Installation procedure For uPVC pipe fittings with rubber ring joint
uPVC rubber ring seal fittings provide a quick & easy installation way for connection the uPVC pipe. Due to easy installation, they are adopted by more & more customers.
Before connection, the installer shall check that the spigot end, if cut in the field, has a chamfer of approximately 12° to 15°. This is essential for installation.
Technical Parameter
The uPVC pipe fittings are manufactured into GB/T10002.2-2003, as well as ISO 4422-3:1996, ISO 1542-3:2009 standard.
Characteristic | Requirement | ||||
Vic. Soft Temperature | ≥74℃ | ||||
Dry Oven Test | Accord with GB/T 8803-2001 | ||||
Drop Shutter Test | No Crack with all samples | ||||
Hydraulic Pressure Test | Normal Outer Dia. dn | Temperature ℃ | Pressure Mpa | Time H | Requirement |
dn≤90 | 20 | 4.2×PN | 1 | No Crack No Leak | |
3.2×PN | 1000 | ||||
dn＞90 | 20 | 3.36×PN | 1 | ||
2.56×PN | 1000 | ||||
Manufacturing Facilities

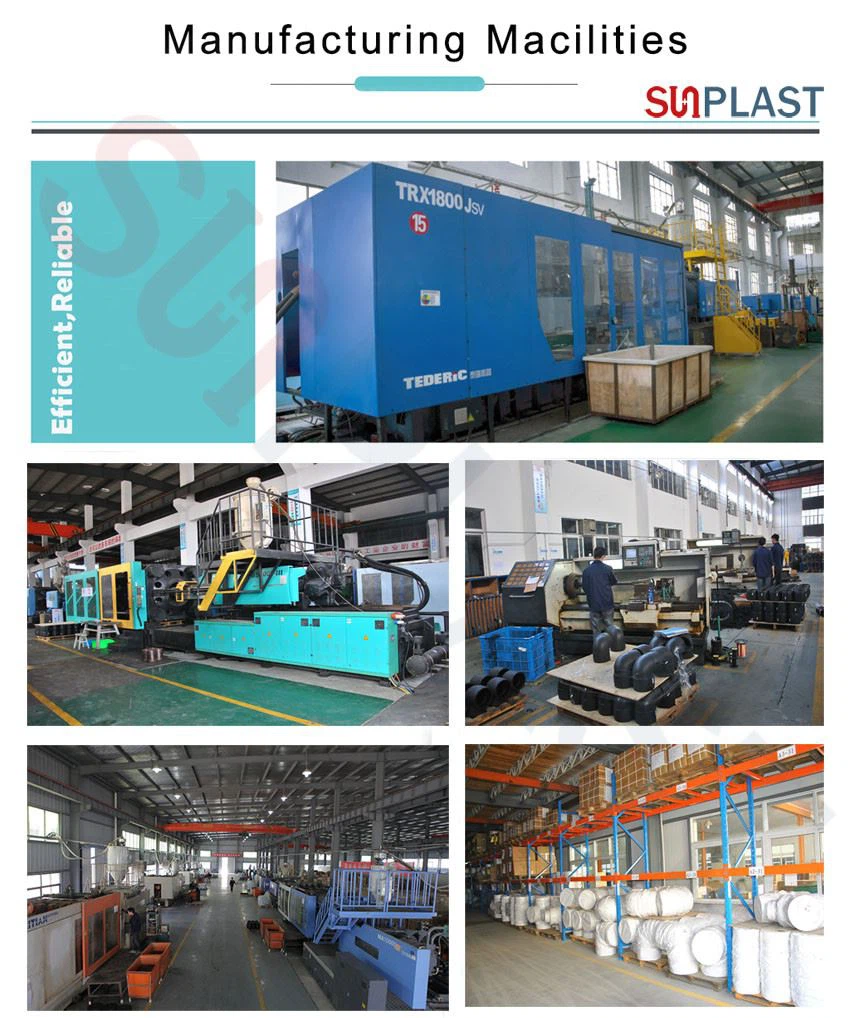

SUNPLAST has been engaging in manufacturing of uPVC pipe fittings over 15 years. The factory has introduced over 30 sets advanced production injection machines.
As a leading manufacturer in China, SUNPLAST owns mature technology, advanced production machine, professional workers & completed QC system. All uPVC fittings are manufactured strictly in compliance with national standards and international standards.
