HDPE Electrofusion Fittings, HDPE Electrofusion 90 Degree Elbow, Electrofusion 90 degree elbow，Electrofusion elbow 90，Electrofusion Elbow, HDPE Electrofusion Elbow, Electrofusion Bend

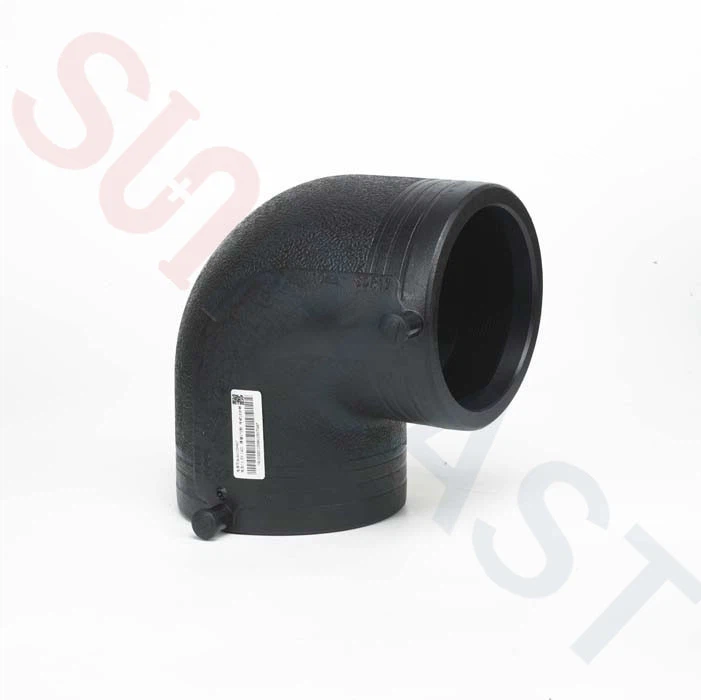

HDPE electrofusion 90 Degree Elbow is used to join two lengths of poly pipe on an angle of 90 degrees.

Electrofusion elbow fittings are made from PE100 material with a precisely molded energizing coil of wire, ensuring uniform melting for a strong electrofusion joint and the minimization of welding and cooling times. 90 degree elbow electrofusion fittings are suitable for use for HDPE pipe, and welded with an electrofusion pressure welder. Electrofusion elbow 90 degree PE fittings may also be known as an electrofusion elbow joiners or EF elbow pipe joiners.

Made by 100% PE100 material, SUNPLAST HDPE electrofusion elbow 90 degree can can be supplied in a diameter sizing from dn32~dn400mm in SDR11-PN16. SDR 11 electrofusion elbow 90 degree are rated to PN16 for water and PN10 for gas.

The electrofusion bend 90 degree fittings are injection molded in one time, and conform to ISO4427-3,EN12201-3, AS/NZS 4129, EN1555, EN ISO15494 standard (ISO4437-3 for gas)

SUNPLAST keeps mass stock in demand for regular sizes, and customers’ urgent demand & prompt shipment request can be satisfied.

More brief details as below:

Product Specifications

HDPE Electrofusion Elbow 90 degree: available from DN32~DN400mm

Pressure: SDR11-PN16 & SDR17-PN10

Material: 100% virgin PE100 material

Color: black color or blue color.

(Noted: the technical data is just for reference, some data may change, if you need exact data, then please contact us directly)

Benefits Of HDPE Electrofusion Fittings

The two most common methods to weld HDPE pipe are the electrofusion and the butt welding.

By compare to butt welding methold, the electrofusion welding has main benefits, such as simple welding, reliable jointing..etc.

R It makes much easier the access when we have to weld in difficult situations or when we have little space to access the pipe.

R We can join polyethylene materials of different generations and thicknesses without weaken the welding, by using same HDPE electrofusion fittings.

R The cost of the installation is low, so it is very suitable to do it in private dwellings.

R The welding equipment is, compared to the butt welding, cheaper and lighter, what allows moving it with ease.

R It offers a wide range of solutions with simple power point and tapping saddle

Raw Material We Use

Raw material with excellent performance is the most import element to manufacture the topping quality electrofusion fittings. To guarantee the superior quality of our HDPE spigot fittings, SUNPLAST only adopts TOP QUALITY PE100 material from worldwide reputed factories that are approved by PE100+ association.

The PE100 materials we mainly use are:

HE3490-LS from Borealis

P6006 from Sabic

YGH041T from Sinopec.

Those PE100 materials are certified as the top raw material by the professional in this vocation. The preferable performance of those materials and their stability establish the high quality station of SUNPLAST HDPE fittings products at all the while.

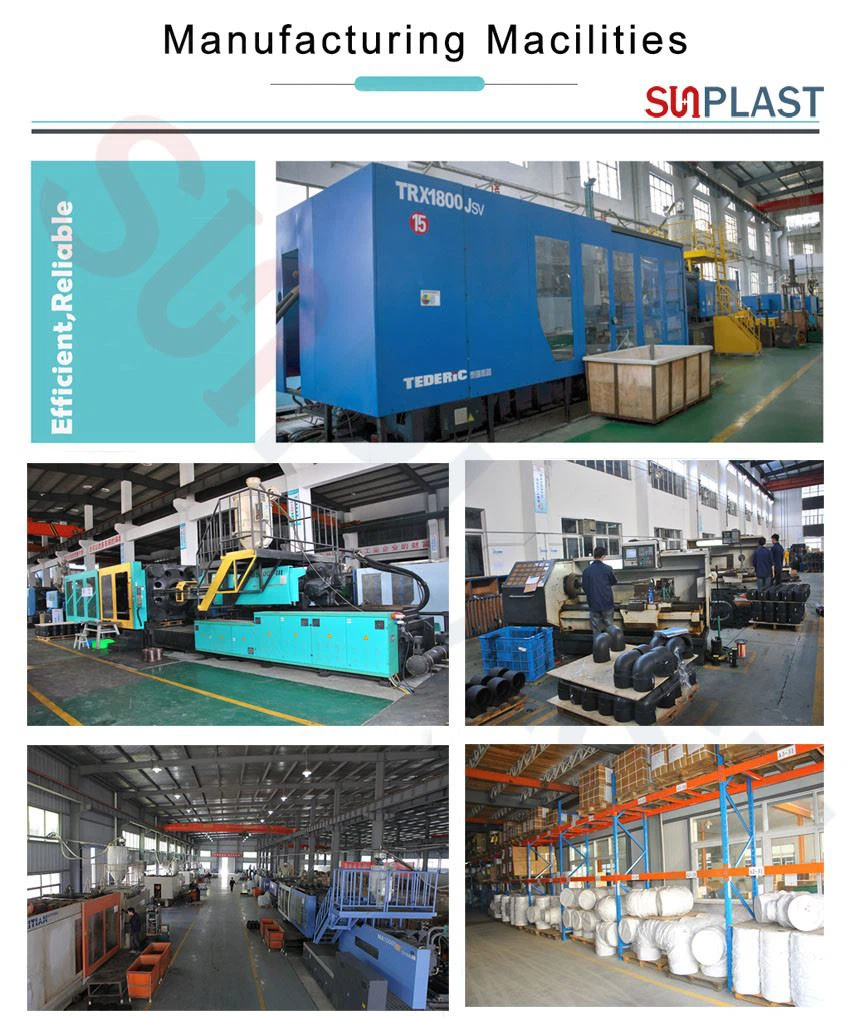

Manufacturing Facilities

SUNPLAST is a ISO9001 certificated manufacturing factory. As a premier manufacturer of HDPE electrofusion fittings, the factory owns mature technology, advanced production machine, professional workers & completed QC system. All electrofusion fittings are manufactured strictly in compliance with national standards and international standards.

Till now, there is over 30 sets of injection machines in SUNPLAST workshop, available to manufacture HDPE fittings till 800mm, and annual production capacity reaches 6,000 tons.

FAQS

* Is scraping necessary before Electrofusion?

A: Yes, before electrofusion, the installer shall scrap the oxidation layer on both edage of HDPE pipe, the scrap area shall cover the edage of pipe to the marking line on the pipe, which mark insert depth of the electrofusion fittings. This is necessary step.

* What type of electrofusion elbows can Sunplast provide?

A: At the moment, Sunplast can provide electrofusion 90 degree elbows & electrofusion 45 degree elbows, both are designed in SDR11-PN16.

* Can SUNPLAST HDPE electrofusion fittings weld to the HDPE pipe from the other manufacturer?

A: Yes, as long as as the HDPE pipe is standard size as per ISO4427, and be made of virgin HDPE material.

Contact Us

If you have any requirements on HDPE Electrofusion fittings, or any question on our fittings, please contact us freely. SUNPLAST has well trained staff who are available to address your needs and provide technical support to all sectors when needed.
